Asking Price:
Make Offer
Preliminary Specifications - Subject to Verification
| Total Time Since New: | 11,585 hours (As of January 2024) |
| Total Landings Since New: | 6,136 landings |
| Entry into Service Date: | May, 1992 |
| Program Coverage: | None |
| Maintenance Tracking: | CMP |
Times/Landings as of July 2023
| #1 (Left) | #2 (Right) | |
| Description: | ROLLS-ROYCE DERBY PLCTAY611-8 | |
| Total Hours Since New: | 11,448 hours | 11,536 hours |
| Total Cycles Since New: | 6,078 cycles | 6,124 cycles |
| Overhaul Due: | March, 2029 @ E1 11,801hrs / E2 11,889hrs | |
| Program Coverage | None |
| Description: | Honeywell GTCP36-100 (MSG3) |
| APU Total Time Since New: | 6,041 hours |
| Program Coverage: | MSP |
| TYPE OF UNIT | QUANTITY | UNIT DESCRIPTION |
|---|---|---|
| EFIS (Electronic Flight Instrument System) | Six-tube | Honeywell |
| FMS (Flight Management System) | Three | Single Universal UNS-1ESPW & Dual Honeywell NZ-2000 |
| GPS (Global Positioning System) | Dual | Honeywell GNSSU |
| ADC (Air Data Computer) | Dual | Honeywell AZ-810 |
| Data Acquisition Unit | Single | Honeywell DA-884 |
| Flight Data Acquisition Unit | Dual | Teledyme Control 70-251 |
| Navigation Receiver | Dual | Collins VIR-432 |
| DME (Distance Measuring Equipment) | Dual | Collins DME-442 |
| ADF (Automatic Direction Finder) | Dual | Collins ADF-462 |
| Performance Autothrottle Computer | Dual | Honeywell PZ-800 |
| Simbol Generator | Three | Honeywell SG-884 |
| Fautl Warning Computer | Dual | Honeywell FC-880 |
| Airborne Data Link | Single | Universal UL-801 |
| A/P (Autopilot) | Dual | SPZ-8000 IFCS |
| VHF COM (Very High Freq. Communication) | Dual | Collins VHF-422D |
| HF COM (High Freq. Communications) | Single | Collins HF-9032 |
| SATCOM (Satelite Communications) | Single | AirCell Axxess |
| RAD ALT (Radar Altimeter) | Single | ALT-55 |
| RADAR | Single | Honeywell WU-870 |
| AI (Attitude Indicator) | Single | BF-Goodrich ADI-331A |
| ALT (Altimeter) | Single | Thomson CSF |
| XPNDR (Transponder) | Dual | Collins TDR-94D Mode S |
| EGPWS (Enhanced Ground Proximity Warning System) | Single | Honeywell MK-V |
| TCAS (Traffic Collision Avoidance System) | Single | ACSS RT-910 w/change 7.1 |
| LIGHTNING SENSOR | Single | Honeywell LP-850 |
| FGC (Flight Guidance Computer) | Single | FZ-820 |
| CVR (Cockpit Voice Recorder) | Single | Universal CVR-120A |
| FDR (Flight Data Recorder) | Single | L3 Harris F100 |
| ELT (Emergency Locator Transmiter) | Single | Artex C402-6 |
| DESCRIPTION | |
|---|---|
| Number of passengers | (13) Thirteen pax configuration |

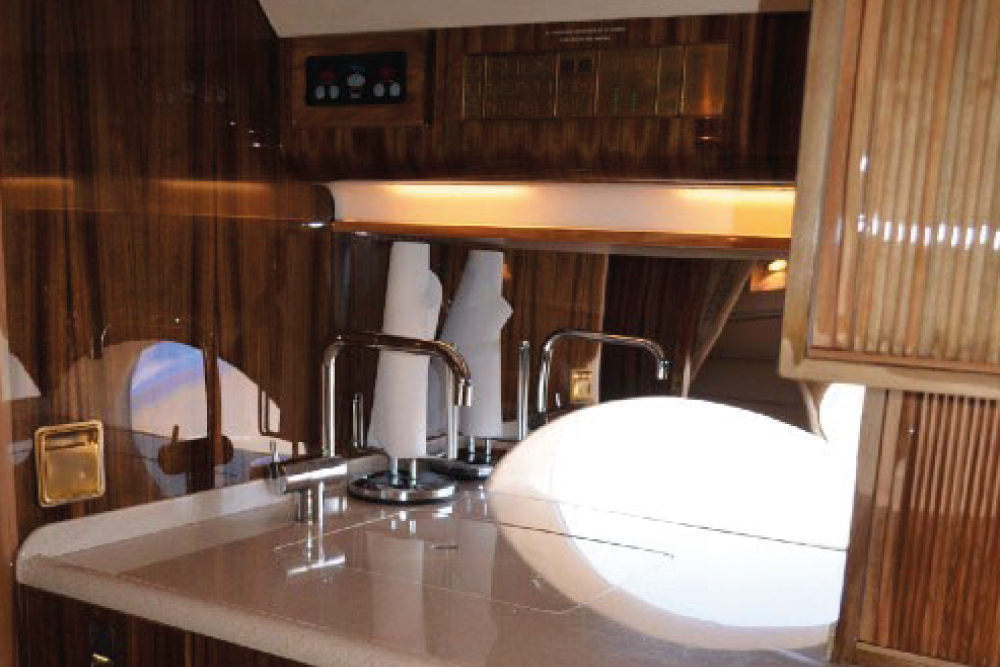

| Galley Location | Fwd |

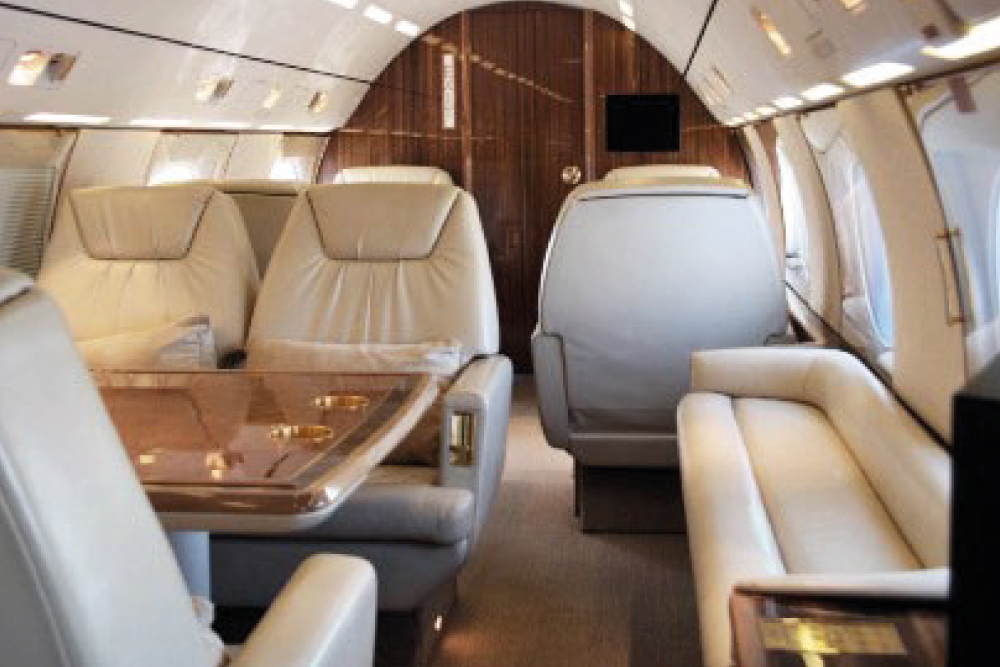

| Forward Cabin Configuration | (4) Four Single Club Seats |

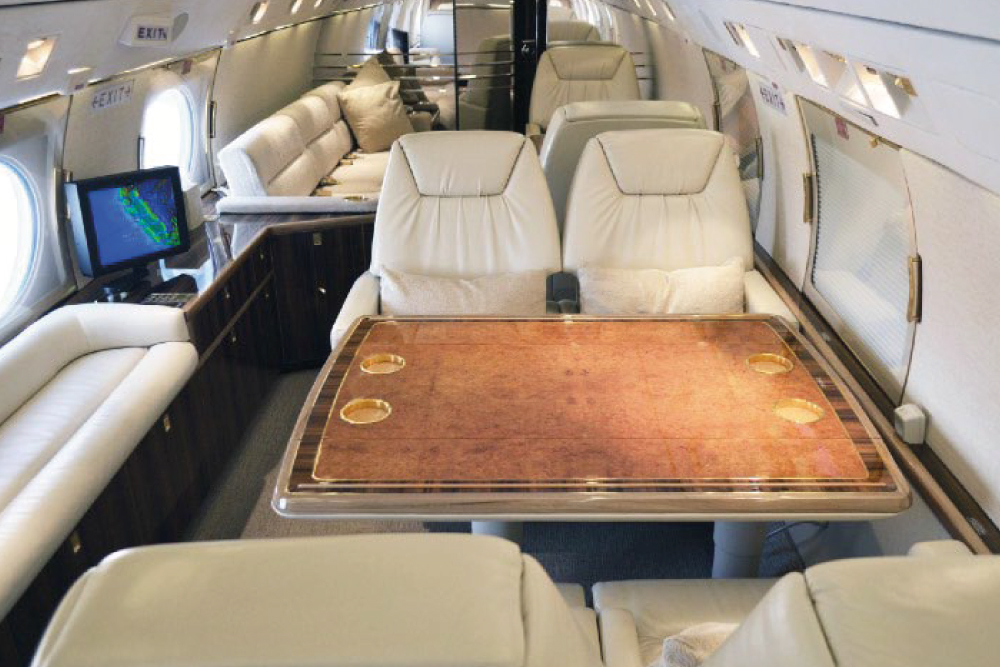

| Mid Cabin Configuration | (4) Four Place Conference Group opposite a Kibitzer Seat and Credenza |
| Aft Cabin Configuration | (5) Two place Club opposite a Three Place Divan |

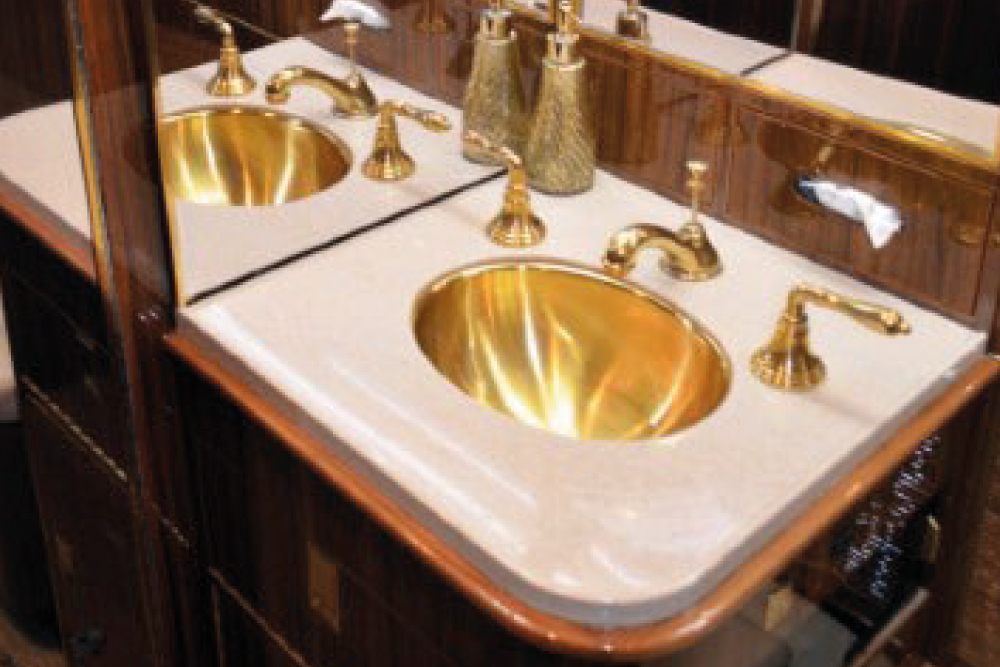

| Lavatory Location(s) | Fwd & Aft |
| Crew Rest | Fwd |
| Jumpseat | Yes |
| Other Notable Features | WI-FI Gogo ATG-4000 / Airshow 200 / 10-inch TV Monitor / 10 CD changer / VCR & DVD Player / High Temp Oven / Microwave / Hotcup water dispenser |
| Last Refurbished Date | February, 2014 |
| Base Paint Color(s) | Overall White |
| Stripe Color(s) | Black & Gold |
| Last Painted Date | August, 2022 |
